Details

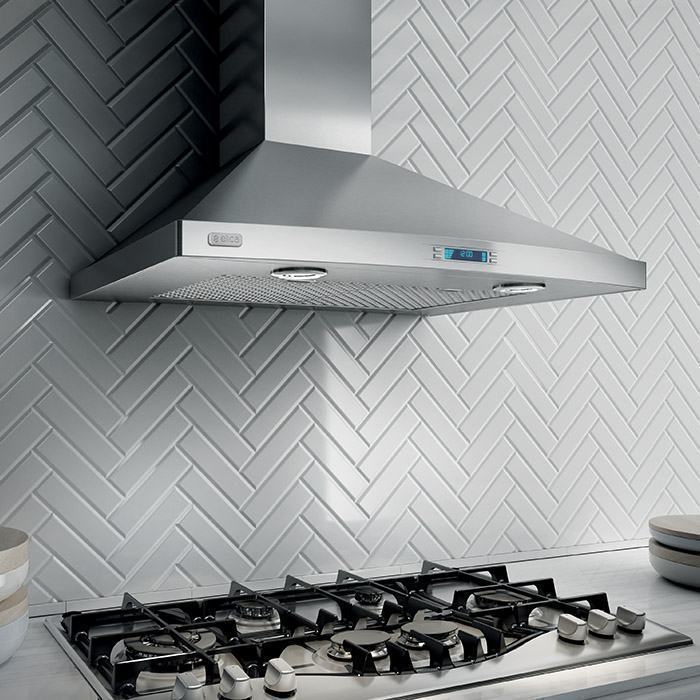

The rounded front, beautifully sloping angles and Stainless finish of Pilato make a striking visual statement.
CFM REDUCTION
Enables the user to reduce directly in the glass touch control the maximum blower CFM (CRS) to meet local code requirements
DIM LIGHT
Dimmer allows to adjust the the brightness of light as you wish
TOUCH CONTROL
Touch controls discretley hidden behind sleek black glass and iluminate a soft blue when activiated
HUSH SYSTEM
Effectively reduces sound levels up to 35%, compared to typical range hoods
TOP PERFORMANCE
High fume capturing capacity with an average aspiration of 600 CFMs with low noise levels, 1.2-1.7 sones working speed.
LED LIGHT
2 ? 2.5 watt LED dimmable lighting, which are long life and energy efficient
General
Brand
ELICA
Model
EPL630S1
Category
Wall Mount And Chimney Range Hoods
Colour
VENT
Features
Maximum CFM
600
Speeds
4
Duct Size
6
Sones (Min - Max)
1.5-8.2
Manufacturers Warranty - Parts
2 YEARS + 1 IF REGISTER
Manufacturers Warranty - Labour
2 YEARS + 1 IF REGISTER

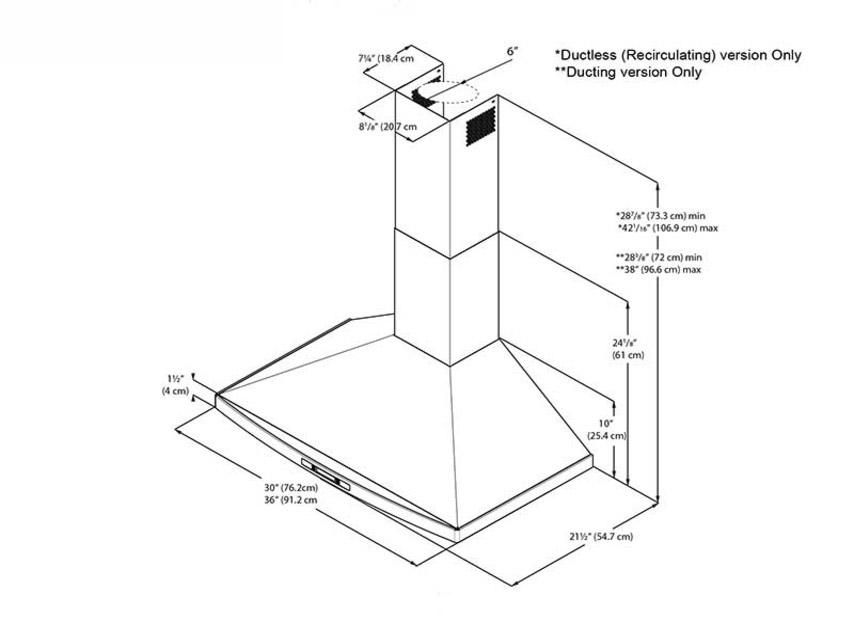

Dimensions
Width
30 in
Height
21.5 in
Depth
10.25 in
Weight
21 kg
DISCLAIMER: Please note these documents are for planning purposes only and may change without notice. For complete details, please refer to any documents packed with the product.
21.5″ / 54.61 cm
Height
21 kg / 46.3 lbs
Weight
10.25″ / 26.035 cm
Depth
30″ / 76.2 cm
Width
